bench_search.cxx File Reference

#include "bench_config.hpp"
#include <fstream>
#include <config.hpp>
#include <utils/filesystem.hpp>
#include <utils/numerics.hpp>
#include <utils/dataset.hpp>
#include <utils/misc.hpp>
#include <utils/vision.hpp>
#include <utils/logger.hpp>
#include <utils/image.hpp>
#include <utils/cycletimer.hpp>
#include <search/bag_of_words/bag_of_words.hpp>
#include <search/inverted_index/inverted_index.hpp>
#include <vis/matches_page.hpp>

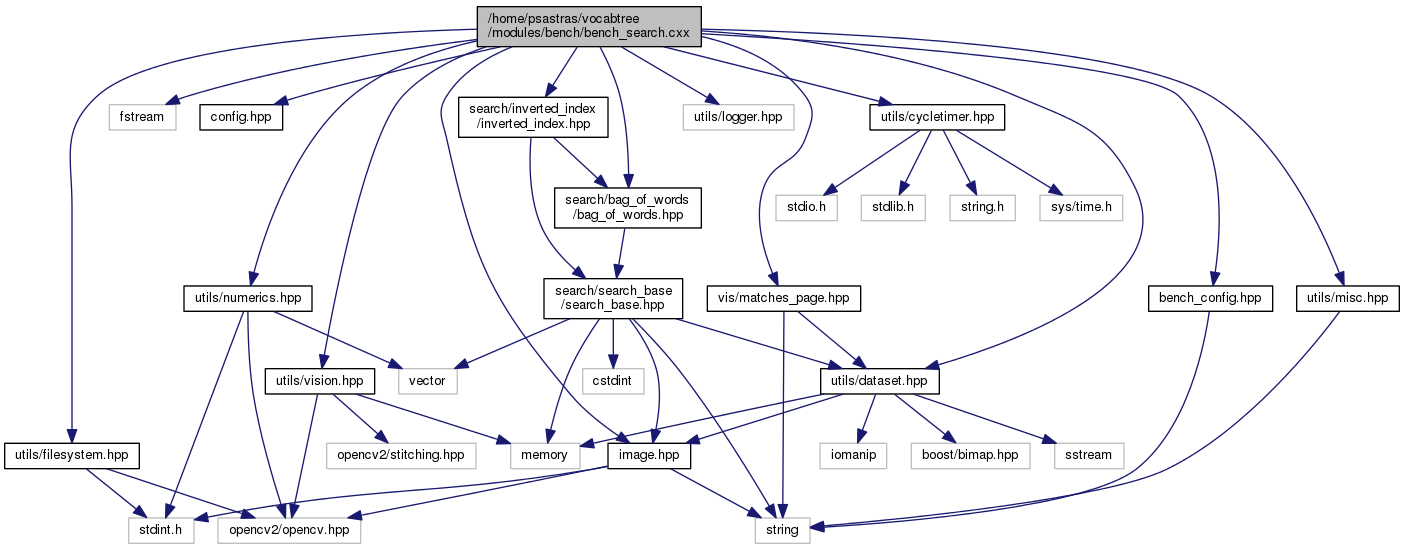

Include dependency graph for bench_search.cxx:

Go to the source code of this file.

Functions
_INITIALIZE_EASYLOGGINGPP void	bench_oxford ()
int	main (int argc, char *argv[])

Function Documentation

_INITIALIZE_EASYLOGGINGPP void bench_oxford

(

)

Definition at line 27 of file bench_search.cxx.

References MatchesPage::add_match(), CycleTimer::currentSeconds(), ENABLE_MPI, ENABLE_MULTITHREADING, ENABLE_OPENMP, vision::geo_verify_f(), misc::get_machine_name(), vision::is_good_match(), filesystem::load_cvmat(), Dataset::location(), SimpleDataset::SimpleImage::location(), s_oxford_data_dir, s_oxford_database_location, s_oxford_num_clusters, and MatchesPage::write().

Referenced by main().

                    {

        MatchesPage html_output;

        const uint32_t num_clusters = s_oxford_num_clusters;

        SimpleDataset oxford_dataset(s_oxford_data_dir, s_oxford_database_location);
        LINFO << oxford_dataset;

        std::stringstream index_output_file;
        index_output_file << oxford_dataset.location() << "/index/" << num_clusters << ".index";
        InvertedIndex ii(index_output_file.str());

        double total_time = 0.0;
        uint32_t num_validate = 16;
        uint32_t total_iterations = 256;
        for(uint32_t i=0; i<total_iterations; i++) {
                double start_time = CycleTimer::currentSeconds();
                std::shared_ptr<InvertedIndex::MatchResults> matches =
                std::static_pointer_cast<InvertedIndex::MatchResults>(ii.search(oxford_dataset, nullptr, oxford_dataset.image(i)));
                if(matches == nullptr) {
                        LERROR << "Error while running search.";
                        continue;
                }
                double end_time = CycleTimer::currentSeconds();
                total_time += (end_time - start_time);


                // validate matches
                cv::Mat keypoints_0, descriptors_0;
                std::shared_ptr<SimpleDataset::SimpleImage> query_image = std::static_pointer_cast<SimpleDataset::SimpleImage>(oxford_dataset.image(i));
                const std::string &query_keypoints_location = oxford_dataset.location(query_image->feature_path("keypoints"));
                const std::string &query_descriptors_location = oxford_dataset.location(query_image->feature_path("descriptors"));
                filesystem::load_cvmat(query_keypoints_location, keypoints_0);
                filesystem::load_cvmat(query_descriptors_location, descriptors_0);
                std::vector<int> validated(num_validate, 0);
#if ENABLE_MULTITHREADING && ENABLE_OPENMP
                #pragma omp parallel for schedule(dynamic)
#endif
                for(int32_t j=0; j<(int32_t)num_validate; j++) {
                        cv::Mat keypoints_1, descriptors_1;
                        std::shared_ptr<SimpleDataset::SimpleImage> match_image = std::static_pointer_cast<SimpleDataset::SimpleImage>(oxford_dataset.image(matches->matches[j]));
                        const std::string &match_keypoints_location = oxford_dataset.location(match_image->feature_path("keypoints"));
                        const std::string &match_descriptors_location = oxford_dataset.location(match_image->feature_path("descriptors"));
                        filesystem::load_cvmat(match_keypoints_location, keypoints_1);
                        filesystem::load_cvmat(match_descriptors_location, descriptors_1);

                        cv::detail::MatchesInfo match_info;
                        vision::geo_verify_f(descriptors_0, keypoints_0, descriptors_1, keypoints_1, match_info);

                        validated[j] = vision::is_good_match(match_info) ? 1 : -1;
                }

                html_output.add_match(i, matches->matches, oxford_dataset, std::make_shared< std::vector<int> >(validated));
                html_output.write(oxford_dataset.location() + "/results/matches/");
        }




        // Write out the timings
        std::stringstream timings_file_name;
        timings_file_name << oxford_dataset.location() + "/results/times.index." <<  ii.num_clusters() << ".csv";
        std::ofstream ofs(timings_file_name.str(), std::ios::app);
        if((size_t)ofs.tellp() == 0) {
                std::stringstream header;
                header << "machine\ttime(s)\titerations\tmultithreading\topenmp\tmpi\t" << std::endl;
                ofs.write(header.str().c_str(), header.str().size());
        }
        std::stringstream timing;
        timing << misc::get_machine_name() << "\t" << total_time << "\t" << total_iterations << "\t" <<
                          ENABLE_MULTITHREADING << "\t" << ENABLE_OPENMP <<
                          "\t" << ENABLE_MPI << "\t" << std::endl;
        ofs.write(timing.str().c_str(), timing.str().size());
        ofs.close();

        // validate matches

}

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 107 of file bench_search.cxx.

References bench_oxford().

                                 {
#if ENABLE_MULTITHREADING && ENABLE_MPI
        MPI::Init(argc, argv);
        int rank = MPI::COMM_WORLD.Get_rank();
        if(rank == 0) {
#endif

        bench_oxford();

#if ENABLE_MULTITHREADING && ENABLE_MPI
        }
        MPI::Finalize();
#endif
        return 0;
}
